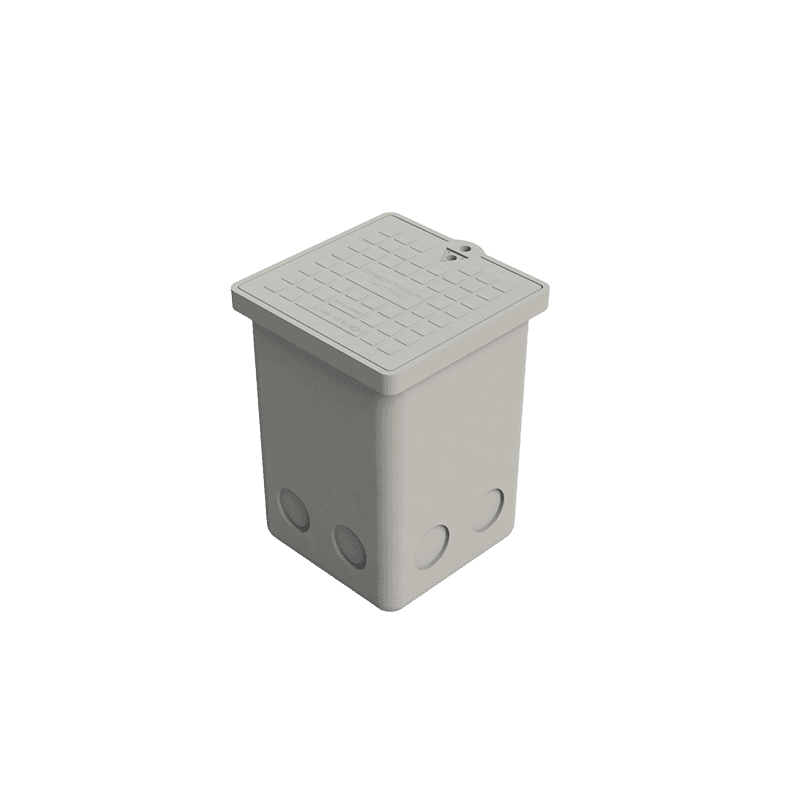

TIP 12, H65 Extension Chamber
Explanation
SMC and BMC are both thermoset composite materials composed of a mixture of resin, reinforcement fibers (typically glass fibers), fillers, and additives. They are used in various industries, including automotive, electrical, and construction, due to their strength, durability, and design flexibility.

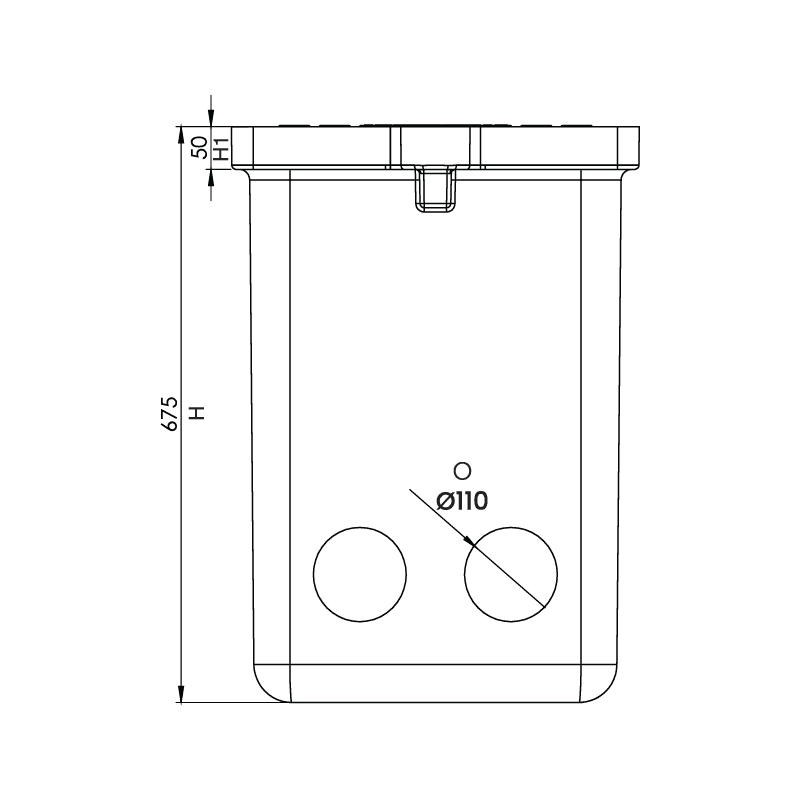

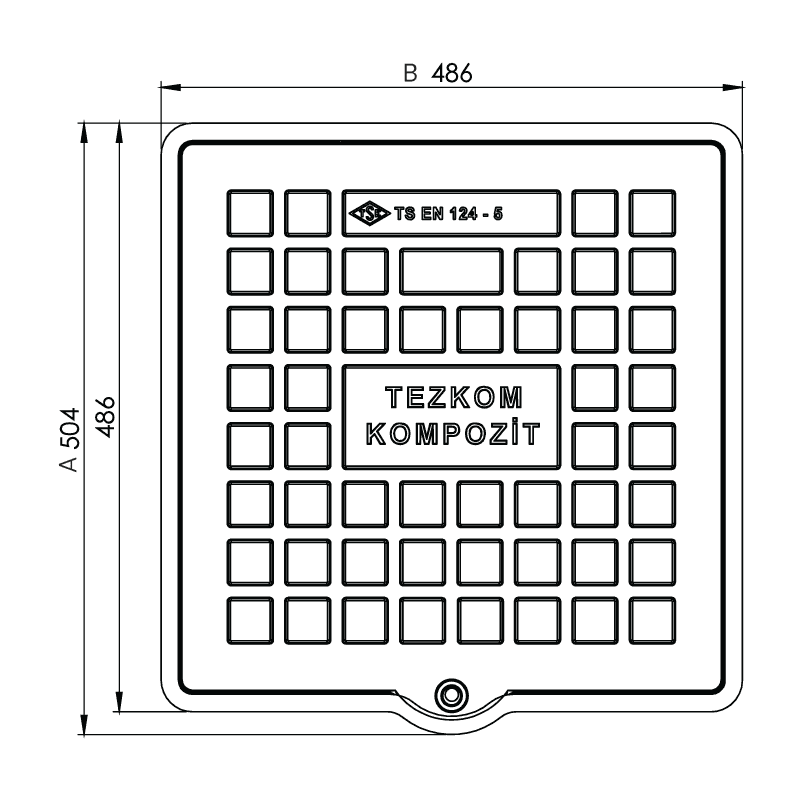

| Class | Weight (kg) | Dimensions (mm) | ||||
|---|---|---|---|---|---|---|
| A | B | H | H1 | O | ||
| A15 | 35,5 | 504 | 486 | 675 | 50 | 110 |
| B125 | 40 | |||||
| C250 | 40 | |||||
| D400 | 45 | |||||
Quality and Standards
Features
High Strength-to-Weight Ratio: Excellent mechanical properties, including impact and tensile strength. Resistant to wear, corrosion, and harsh environmental conditions.
Corrosion & Chemical Resistance: On Highly resistant to chemicals, moisture, and extreme weather conditions. Ideal for outdoor and industrial applications.
Lightweight: Lower density than metals, making them ideal for automotive and aerospace applications.
Design Flexibility: Can be molded into complex shapes with high dimensional accuracy. Supports high integration of parts, reducing the need for assembly.
Electrical Insulation: Excellent dielectric properties, making them suitable for electrical enclosures, switchgear, and insulators.
Fire Resistance: Formulated with fire-retardant additives to meet stringent safety standards.
Cost-Effective & High Productivity: Fast cycle times in production. Reduced waste compared to traditional materials.
